NUBE SS30 Filters / spare parts

How do I remove the hoses?

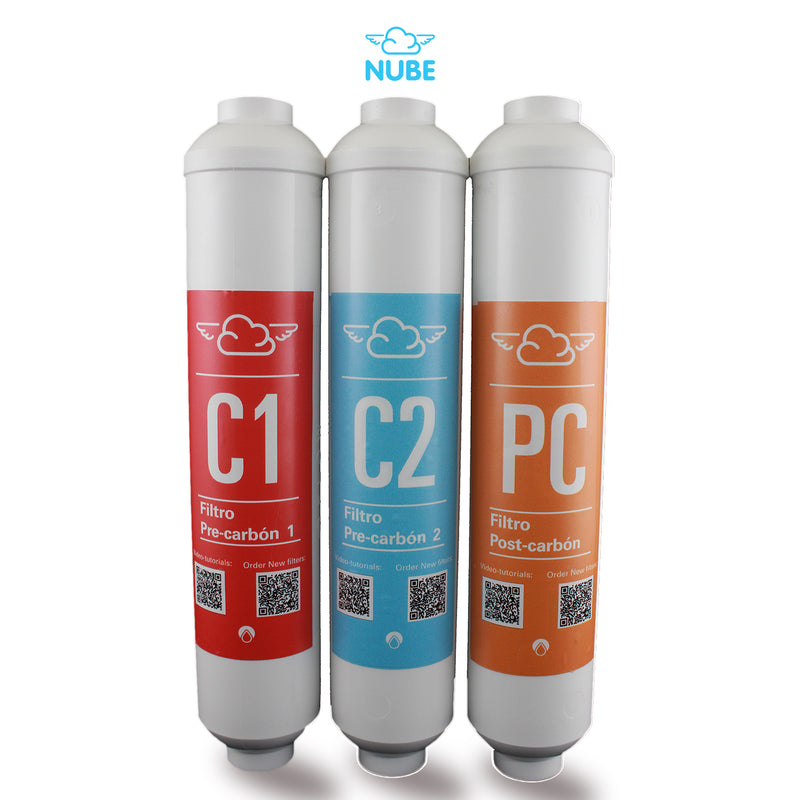

What does the filter kit includes?

• C1 - Pre Carbon Filter: Removes contaminants from the air pollution.
• C2- Pre Carbon Filter: Removes chemicals, improves taste and odor.
• PC - Post Carbon Filter and Mineralizer - Provides micro-elements and minerals which are beneficial to the human body, raise pH level

Kit needs to be replaced every 8 to 12 months on average, depending on usage and air quality. The presence of odor and changes in taste indicate that it's time for a replacement.

The lack of weekly cleaning or keeping the unit turned off decreases the lifespan of the cartridges.

What is the difference between the previous filters and the new ones?

Through extensive research to improve the lifespan of our filters, we have discovered that making them thinner prevents the accumulation of sediments that, over time, reduce their durability. As a result, we have increased their efficiency by approximately 20%. In the previous image, you can see which cartridge replaces which. Additionally, with the purchase of filter sets, we include a clamp for the thin cartridge, ensuring easy installation. In the installation video, you will see how to install the new clamp.

How to install the filter kit?

I am sharing a manual with you so you can see how easy it will be to change the clamp. Apart from that, everything else is the same, as the elbows for hose access are also included.

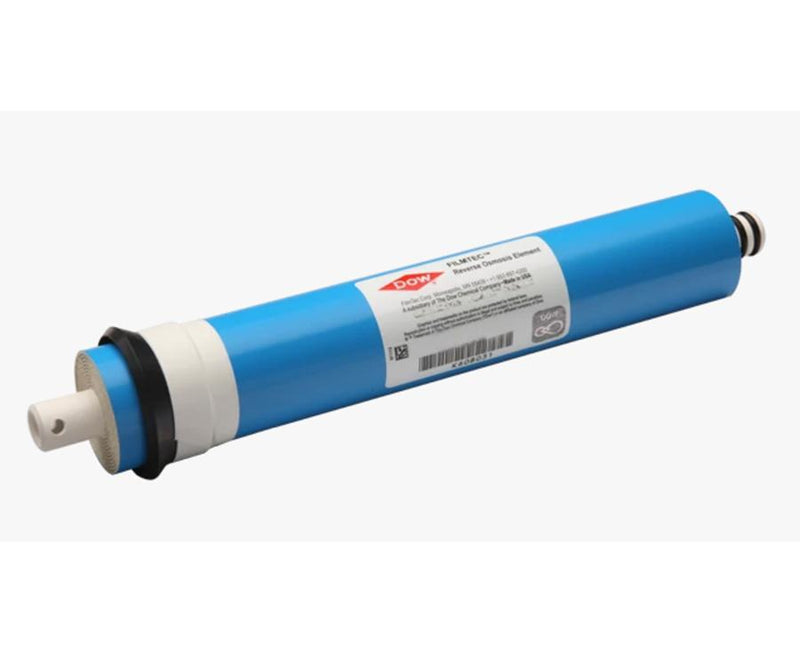

When to change the Reverse Osmosis Membrane?

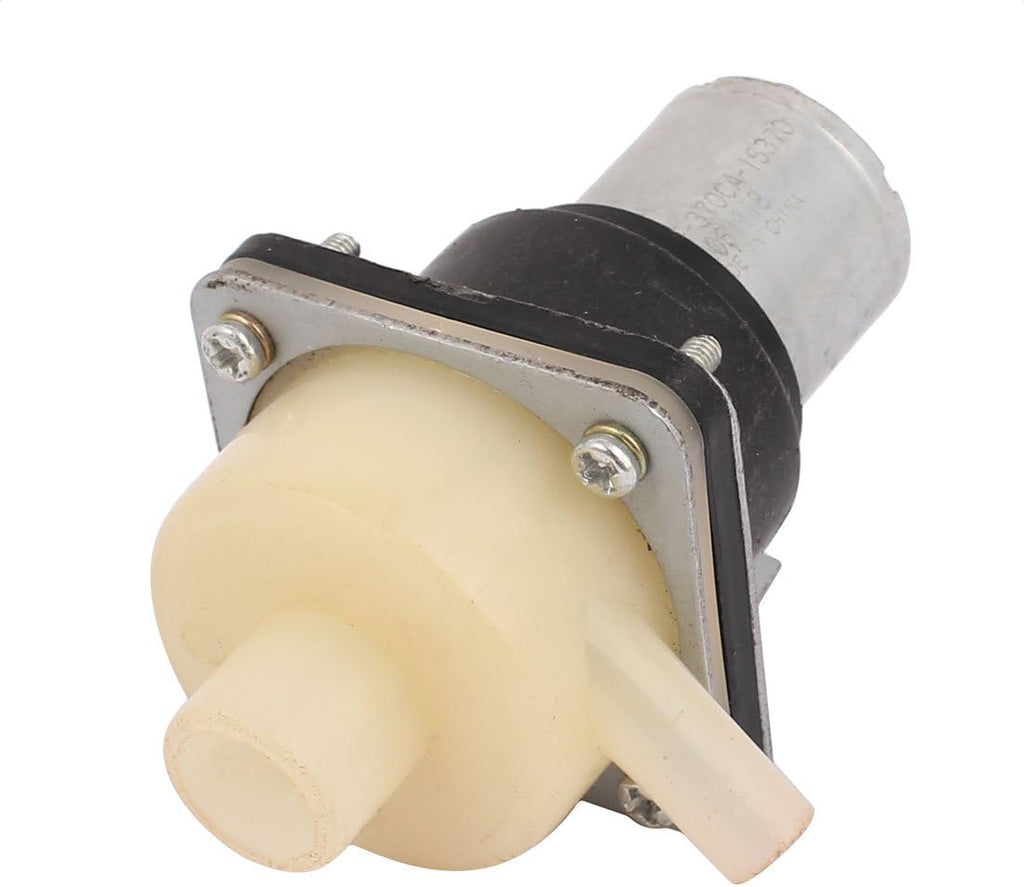

1. When the Booster Pump stops pushing the water to the top tanks.
2. After changing 4 times the cartridges kit.
3. If the bad smell is not removed with a new filters kit.

What happens if the UV light is not turned on?

UV lights are activated according to a unit's program; they do not need to be on at all times.

• UV1 is for the upper tank (the one with water ready for consumption), and it is turned on periodically to sterilize the stored water.
•  UV2 is for the water outlet and is activated when dispensing cold water.
• UV3 is turned on when the bottom tank is almost full before the booster pump is activated to send water to the filters.

When to change the UV Lights?

When a flashing beam blinks on the screen and beeps.

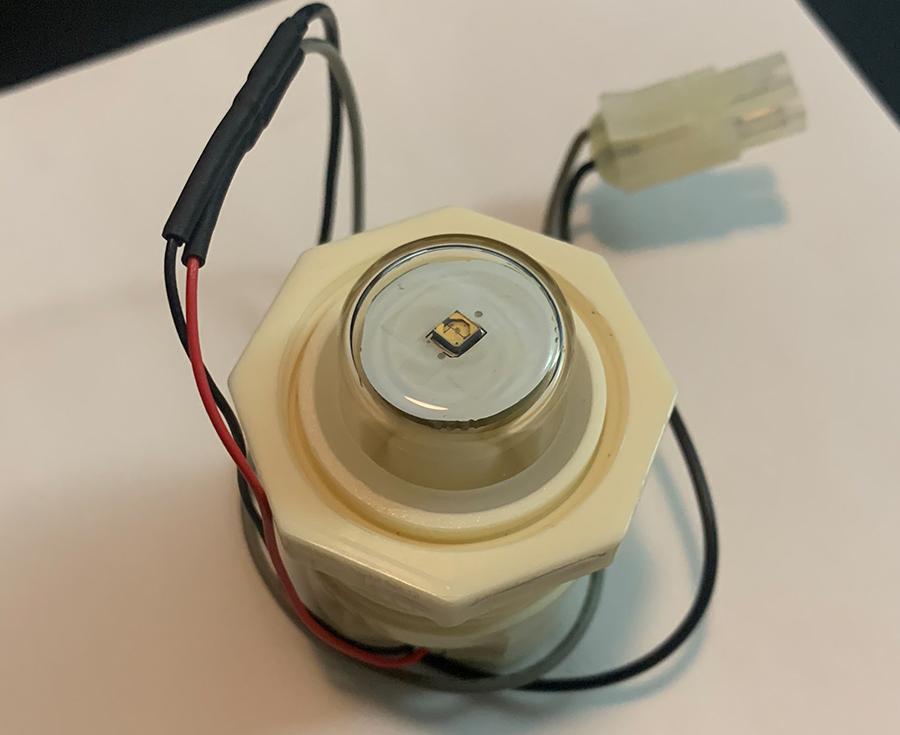

How to know if my UV3 is model A or B?

Check inside your bottom container and compare with the pictures. There is no need to purchase both, just the one you need in your bottom container.

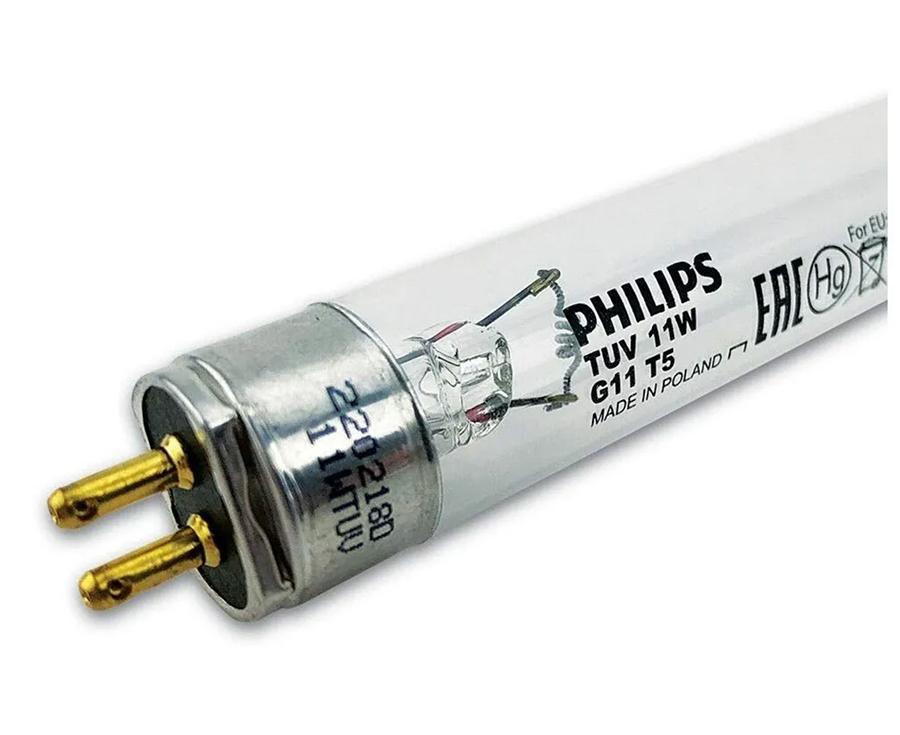

How to replace the UV1 bulb?

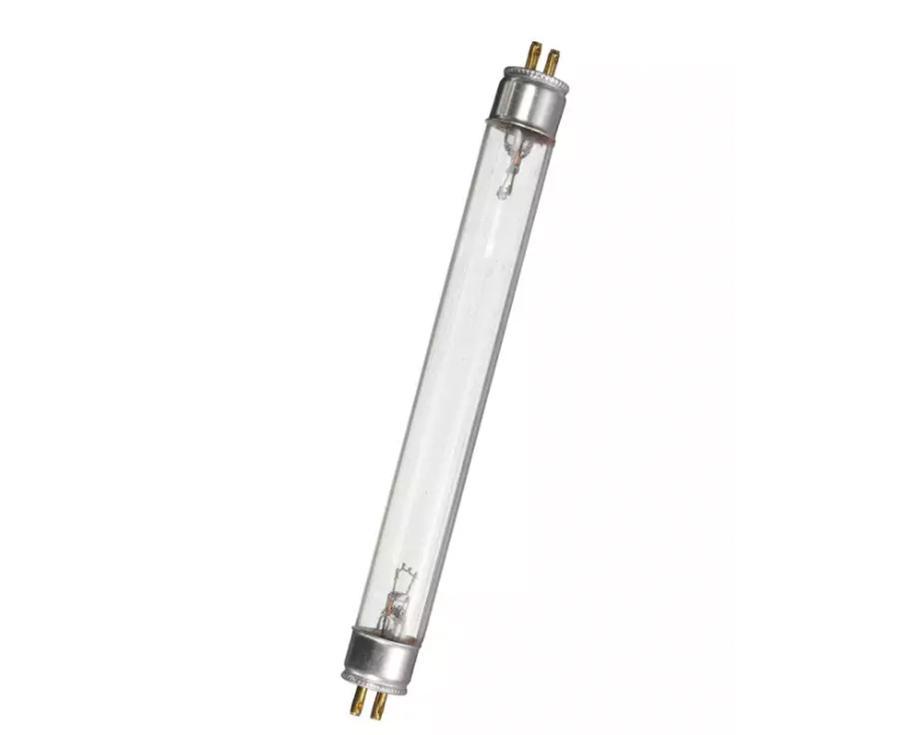

How to replace the UV2 bulb?

How to replace the UV3-A bulb?

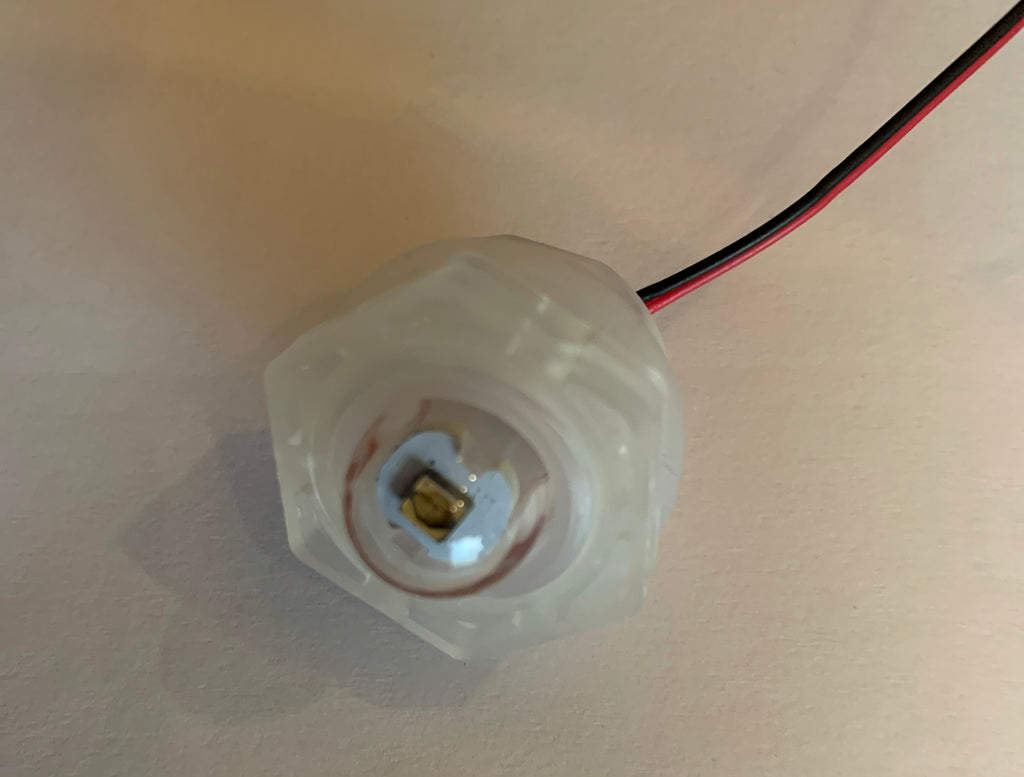

How to replace the UV3-B bulb?

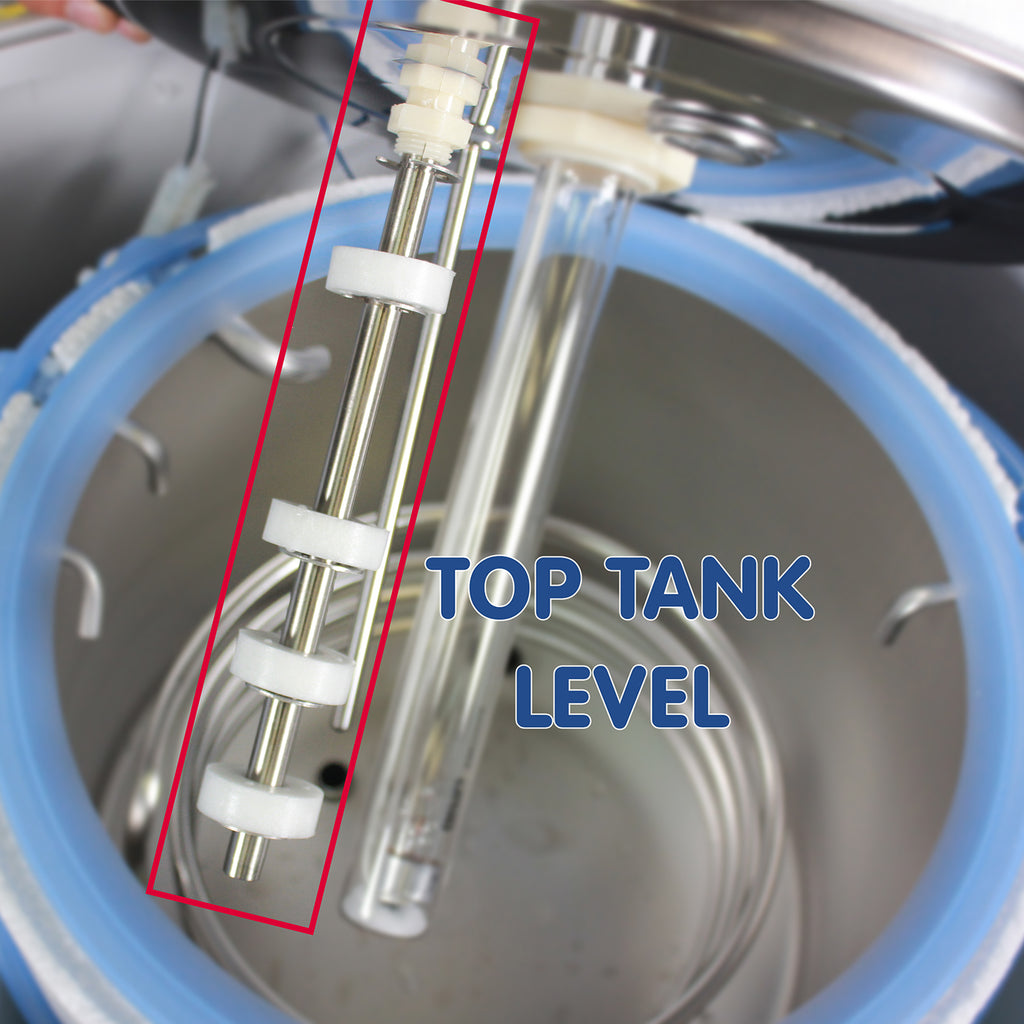

How to know if my top tank level is damaged?

The magnetism and some other magnetic fields from speakers, chargers, and electronic devices can damage your level (Please do not place anything on top of your NUBE).

To detect if it is damaged:

1. Open the top panel of your NUBE
2.  Open the upper tank lid
3. Manually move each white donut. The levels on the Allot indicator should change. If they don't, it is damaged and should be replaced.

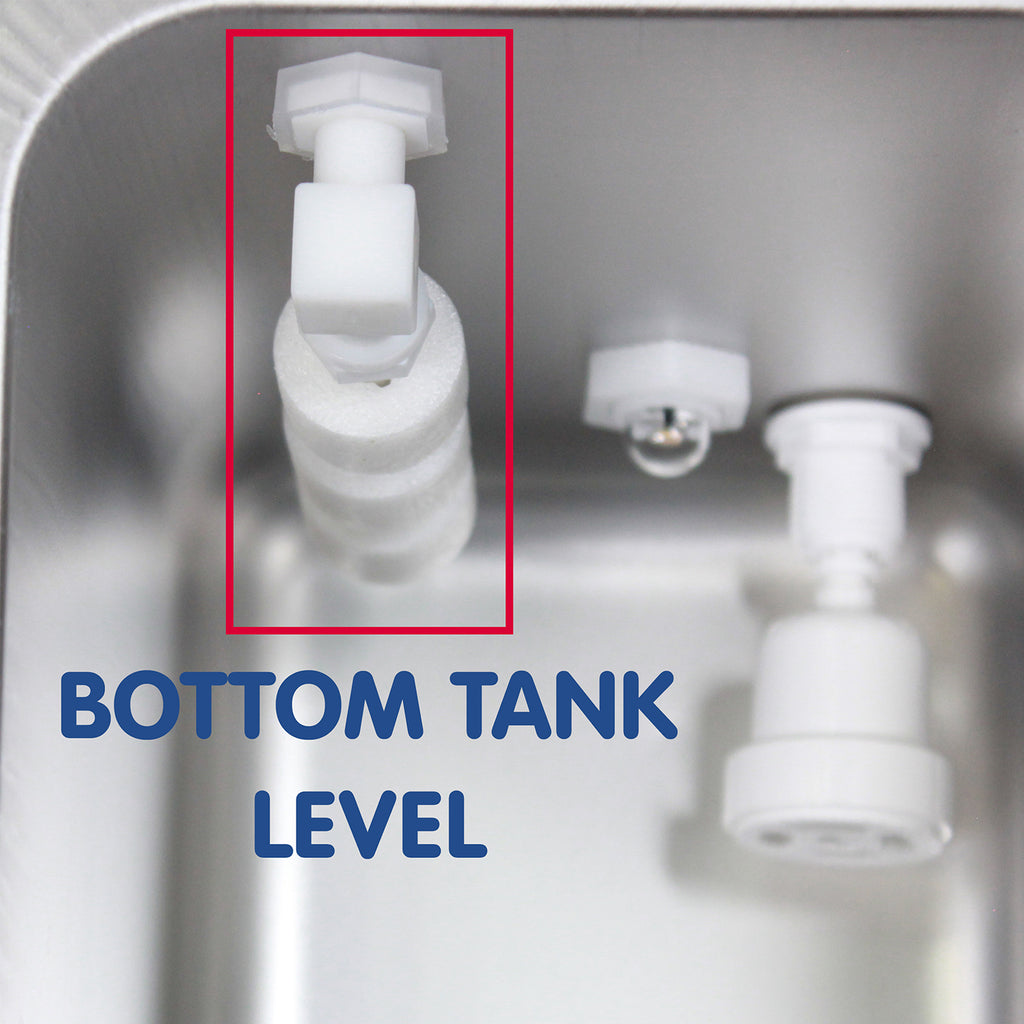

How to know if my bottom tank level is damaged?

The magnetism and some other magnetic fields from speakers, chargers, and electronic devices can damage your level (Please do not place anything on the left side of your NUBE).

To detect if it is damaged:

1. Open the bottom tank of your NUBE
2. Manually move each white donut. The levels on the STORE indicator should change. If they don't, it is damaged and should be replaced.

The cold/hot water handle (Faucet) is broken, what can I do?

The cold and hot water outlet handles can break due to either extensive use or excessive force applied incorrectly.

Replacing them is a straightforward process.

You can order the replacement part from the 'NUBE SS30 spare parts' section, and with the help of the following video, you will see how easy it is to replace them:

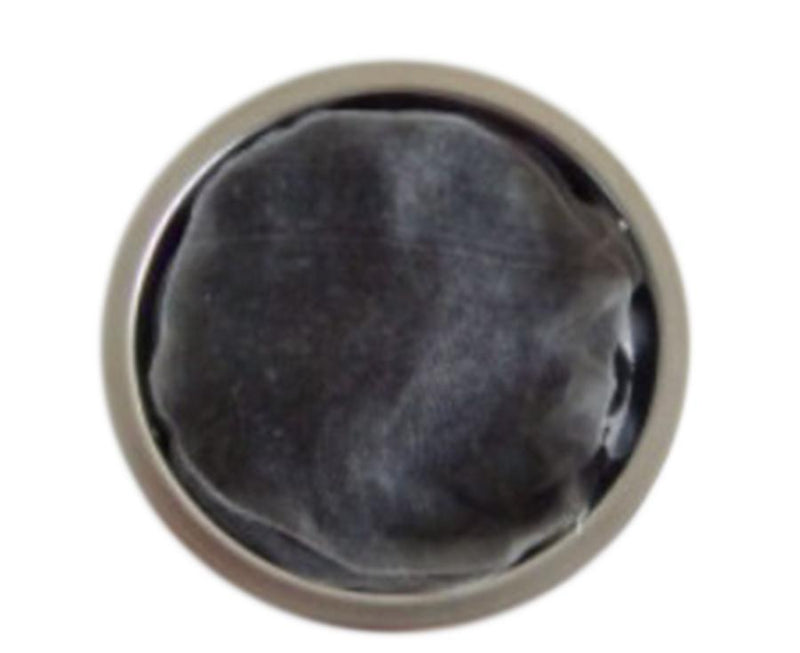

The carbon filter bag in the bottom tank, when does it need to be replaced?

Activated carbon has a high durability because the air water is already very pure from the start (without chemicals to remove). However, it should ideally be washed every week, and the fabric that holds both the carbon and the zeolite inside tends to break down over time, causing carbon and zeolite to come out with each wash. This is when it would be recommended to change it, as soon as it starts to break. This could take 2 to 5 years, depending on how you treat it—like anything else, it depends on how well you take care of it.
